XLE Performer

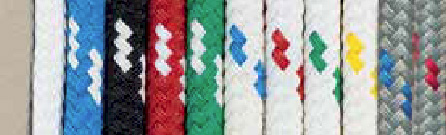

XLE-PERFORMER SERIES is our top of the line extra low elongation, 100% polyester double braid. XLE is made from the highest quality polyester yarns with marine finish on both core and cover. The balanced core to cover construction insures that XLE will remain easy to handle and splice while offering maximum abrasion resistance. Color fast cover yarns are solution dyed Firebrite 2000 polyester available in red, green, blue, black, gray and traditional tan. This strong, low stretch double braid is ideal for all running rigging applications on performance cruisers and racing boats.


Download the PDF



Diameter Net Weight / Reel Ft./Reel Average Tensile Strength
Inch mm Lbs Kg Lbs Kg
3/16" 5 6.36 2.88 600 830 376
1/4" 6 12.0 5.43 600 1,950 885
5/16" 8 20.4 9.24 600 3,500 1,589
3/8" 10 25.8 11.68 600 4,900 2,225
7/16" 11 36.0 16.3 600 6,200 2,815
1/2" 12 45.0 20.38 600 8,500 3,859
9/16" 14 60.6 27.45 600 10,500 4,767
5/8" 16 75.0 33.96 600 15,500 7,037


Features:

  • High Strength
  • Low Stretch
  • Easily Spliced
  • Exceptional Durability

Suggested Uses:

  • Running Rigging
